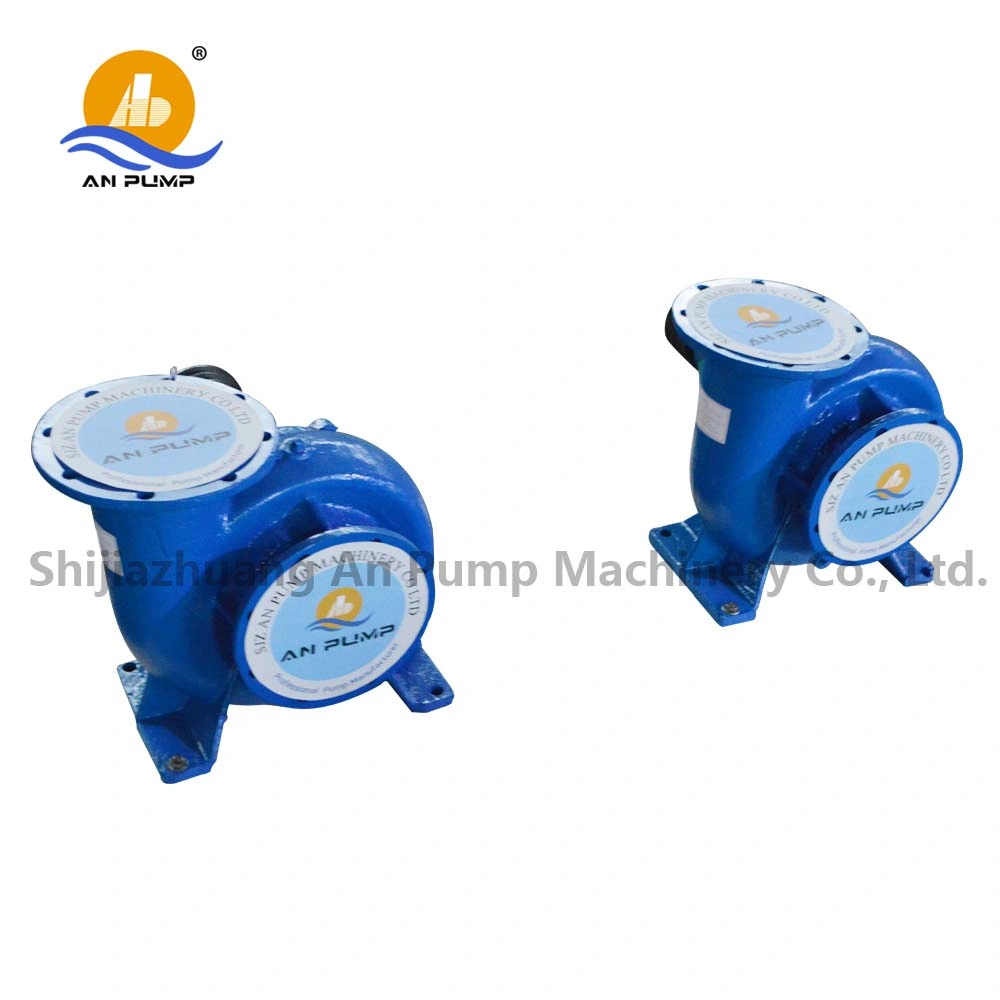

Volute Type Large Flow Stainless Steel Mixed Flow Pump

1. AHW Mixed Flow Pump Introduction:
AHW mixed flow pump is a horizontal singlestage single suction volute mixed flow pump and suitable for transporting pure wateror the other liquid with both physical and chemical natures similar to those ofwater, with the temperature of the liquid to be transported not over 50ºC. Thepump's performance range: flow 130~9000m/h, head 3.5~22m.
This mixed flow pump is mainly used in steelmills, seawater transportation, agricultural irrigation, water conservancy,large flow water supply equipment, drainage, flood control, fire fighting,etc., pharmaceutical and chemical stainless steel materials for acid andalkaline liquid transportation.
2. AHW Mixed Flow Pump Features:
Simple structure, reliable use, easyinstallation, high efficiency, small body, light weight.
3. AHW Mixed Flow Pump driving method:
Direct drive and variable speed drive. Thecommon power engines are electric motor and diesel engine. When ordering, the modelof the power engine should be specified so as to determine the specificationsof the coupling or pulley.
4. AHW Mixed Flow Pump Model meaning:
Take 300AHW~8A forexample:
300----pump's inlet and outlet diameters.
AHW----horizontal volute mixed flow pump.
8----designed head m.
A----cut the impeller's outer diameter orreplace it with an impeller of different performance.
